Data Acquisition System

Data Acquisition System
Data Acquisition System
Send Inquiry
Product Code : 00
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

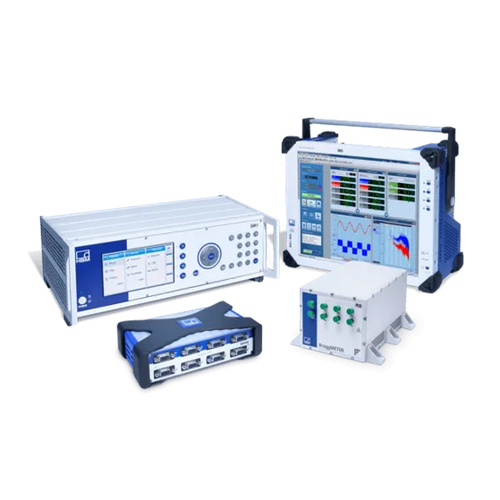

To provide an updated product range to the clients, we are manufacturing and supplying Data Acquisition System. Our offered system is used in various engineering industries for  sampling signals that measure real world physical conditions as well as converting the resulting samples into digital numeric values. This system is utilized for analog input supervision and logic input commands in industrial process control. Our Data Acquisition System is made under the supervision of knowledgeable engineers and Configurable  locally through removable front panel.

Features:

  • Remote Control of Logic Actuators
  • 8 Analog inputs
  • 8 programmable alarm loops

Further details:

Data acquisition and control module for analog input supervision and logic input commands in industrial process control.

  • Acquisition of Analog Measurement and data with remote command (1,200 meter)
  • Remote Control of Logic Actuators
  • Configurable Via Bus or Locally by means of Removable front panel for programming and/or monitoring
  • 8 Analog inputs
  • 8 Logic inputs & 8 Logic outputs
  • 8 programmable alarm loops
  • Two counters featuring reset, inhibition and preset
  • Configurable inputs and ranges either as pt 100, 0...4-20 mA, mV, or V
  • Thermocouple linearization (E, J, K, T, S, R, B and N) on unlinearized 4-20 mA inputs
  • One custom-built curve (Up to fifteen segments)
  • Simultaneous display of actual value inputs, alarms, and the other parameters
  • Din Rail, Wall, or Panel mounting
  • High resolution A/D converter
  • Rs-485/Rs-23 selectable communications format
  • Direct output to printer (Rs-232)
  • Allows user to work independently, or on multipoint net with up to 255 units (Modbus)

Technical Specifications

Analog Inputs

8 channels (common mode)

Configurable by internal jumpers such as

RTD Pt 100

-302o + 1112oF (-150o + 600oC) (3-wire connection)

LIN mV and V

0-50mV (1 Mohm impedance)

LIN

0-4-20mA (2.5 Ohms shunt 0.5%)

User configurable curve

15 segments

Definable ranges

-1999 to +9999 points

Precision

0.1% F.R.

A/D converter resolution

40000 points

Data acquisition speed

125 ms

Filter

Digital, softwre adjustable

Logic inputs

8 (opto-insulated) 12 to 48 Vdac/Vac

Digital Communication


Output

Rs-485 (2 wire) or RS-232 (3 wire)

Protocol

Modbus, RTU mode (binary)

Transmission speed

9600,19200 or 38400 Bauds.

Direct output to printer

RS-232 (EPSON protocol)

General


Front terminal

Up to 2 metre detachable

Front display

4+4 digit, 16 LED pilot, 4 keypads

Mounting

Rail DIN 46277-3 EN 50022 or by means of screws

Power supply

110/220 VAC, 5VA

Trade Information
  • Delivery Time
  • 1 Day to 4 Week
  • Sample Available
  • Yes
  • Main Export Market(s)
  • Middle East, Australia, Asia
  • Main Domestic Market
  • All India
