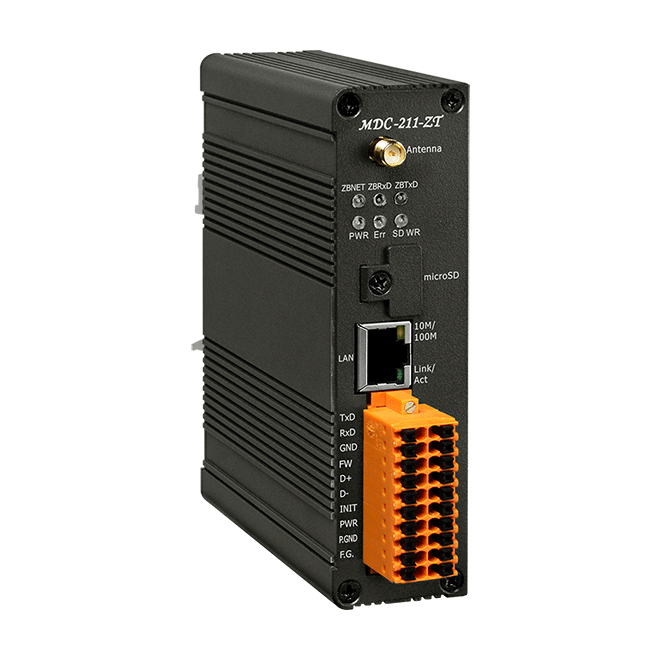

Modbus Gateway

Modbus Gateway
Modbus Gateway
Product Code : 12
Product Description

With our age old expertise, we have developed a unique name for our organization as a manufacturer and supplier of Modbus Gateway. This multiplexer is designed & developed for industrial applications. Our offered modbus device is available with Modbus TCP and Modbus RTU communications. Suitable for power supply of  9 to 30 volts DC, our multiplexer is available with DIN rail mounting and temperature-resistant industrial case. This Modbus Gateway is available in the market at customer friendly prices.

Features

  • Digital I'O's controlled by Modbus
  • RS232/RS485/RS422 selection via software.
  • Easy to install and set up via serial, telnet or a web browser.

Other Details:

  • DIN Rail mounting, temperature-resistant Industrial Case.
  • Modbus TCP, ASCII, RTU Protocols.
  • Modbus Master or Slave.
  • Baud rate: up to 115 Kbps.
  • Digital I'O's controlled by Modbus.
  • RS232/RS485/RS422 selection via software.
  • Easy to install and set up via serial, Telnet or a Web Browser.
  • Wide range power supply (9-30V DC or 9-26V AC).
  • Modbus TCP Multi master.
  • Device search utility.

Specifications:

  • Network Protocols: TCP / IP, UDP, TELNET, HTTP, DHCP, ICMP, ARP, MODBUS TCP.
  • Network Interface: Ethernet 10 BaseT, RJ45 connector.
  • Serial Protocols: MODBUS ASCII, MODBUS RTU.
  • Serial Interface: RS232/485/422/ serial ports in pluggable terminal blocks.
  • Devices Supported: Any RS232/485/422/ Serial Port device using Modbus Protocols requiring Ethernet access.

Management

  • HTTP Server, password protected.

  • TELNET Console, password protected.

  • Serial RS232 Console.

System Firmware: Download able via programming cable (optional).

Indicators: Status Led, Data/Link Led.

Power supply

  • 9 to 30 Volts DC.

  • 200 mA max.

Environmental

  • Operating temperature: 23 to 149oF (-5 to 65oC).

  • Storage temperature: -40 to 167oF (-40 to 75oC).

Optional Accessories: Programming cable.

Guarantee / Support: 1-year limited warranty. Technical support included.
