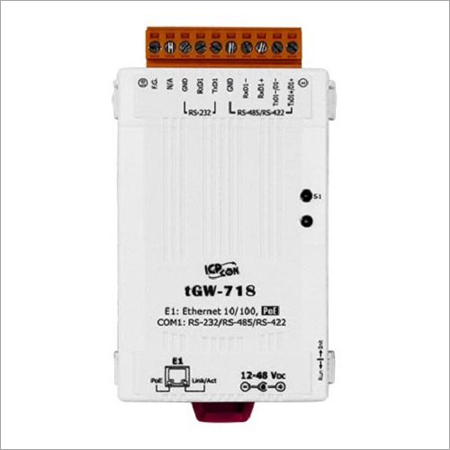

Serial To Ethernet Converter

10000.00 INR/Piece

Get a Price/Quote

Product Details:

Product Type Modbus Gateway
Number of Channels 1
Storage Temperature -30 ~ +80 C Celsius (oC)
Network Connection Methods web page
Power 0.07 A @ 24 VDC Volt (v)
Dimension (L*W*H) 52 mm x 90 mm x 27 mm (W x H x D) Millimeter (mm)
Power Supply +12 ~ 48 VDC
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Serial To Ethernet Converter Price And Quantity

Price 10000.00 INR/Piece
Minimum Order Quantity 1 Number Number Number

Serial To Ethernet Converter Product Specifications

Power Supply +12 ~ 48 VDC
Dimension (L*W*H) 52 mm x 90 mm x 27 mm (W x H x D) Millimeter (mm)
Product Type Modbus Gateway
Network Connection Methods web page
No. of Ports/Pins 1
Storage Temperature -30 ~ +80 C Celsius (oC)
Power 0.07 A @ 24 VDC Volt (v)
Color White
Number of Channels 1
Material Plastic

Serial To Ethernet Converter Trade Information

Payment Terms Cash in Advance (CID) Cheque
Supply Ability 300 Number Number Number Per Month
Delivery Time 3 Days
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications CE/FCC/ROHS

Product Description

Modbus has become a standard industrial communication protocol, and is now the most commonly available means of connecting industrial electronic devices. Modbus allows for communication between many devices connected to the same RS-485 network, for example, a system that measures temperature and humidity and communicates the results to a computer. Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems.

The tGW-700 is a Modbus TCP to RTU/ASCII gateway that enables a Modbus/TCP host to communicate with serial Modbus RTU/ASCII devices through an Ethernet network, and eliminates the cable length limitation of legacy serial communication devices. The module can be used to create a pair-connection application (as well as serial-bridge or serial-tunnel application), and can then route data over TCP/IP between two serial Modbus RTU/ASCII devices, which is useful when connecting mainframe computers, servers or other serial devices that use Modbus RTU/ASCII protocols and do not themselves have Ethernet capability.
