Industrial Cellular Modem

Product Description

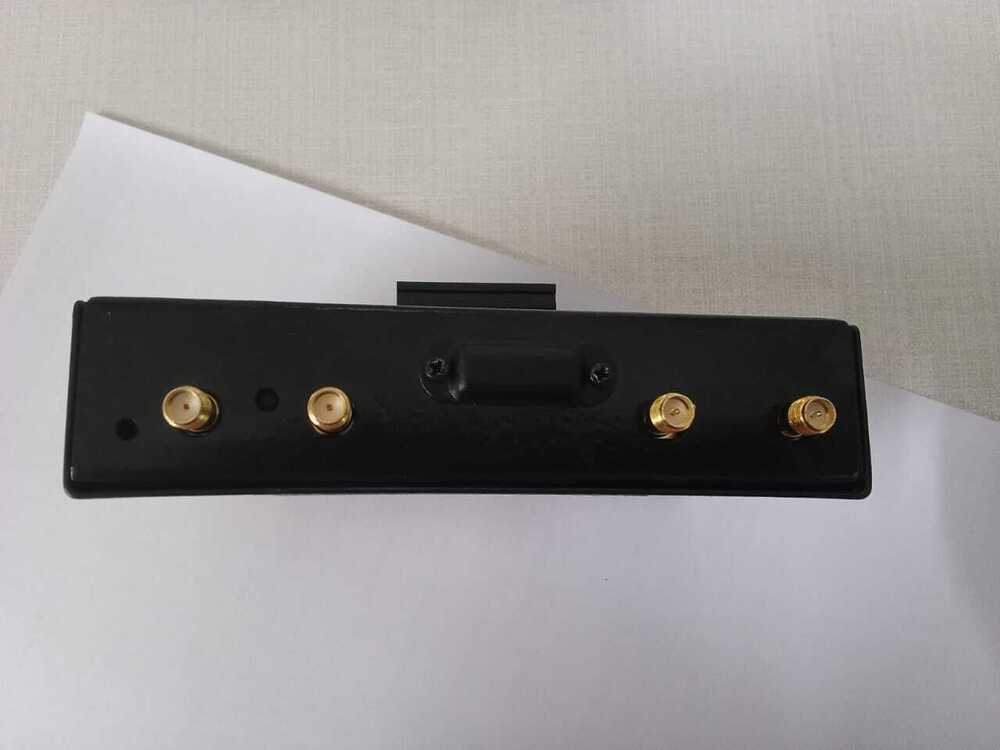

Introduction: -The Robustel R2010 Industrial Cellular Gateway is a rugged, versatile 4G Gateway with dual Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission critical IoT or M2M applications.Cellular InterfaceNumber of antennas2 (MAIN + AUX)ConnectorSMA-KSIM2xMiniSIM(2FF)Ethernet InterfaceNumber of ports2x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WANWAN portSupports 802.3at PD feature (optional)Magnet isolation protection1.5 KVWiFi InterfaceNumber of antennas2 (Wi-Fi1 + Wi-Fi2)ConnectorRP-SMA-KStandards802.11 b/g/n, supporting AP and Client modesFrequency bands2.4 GHzSecurityWEP, WPA, WPA2, WPA3Encryption64/128 AES, TKIPDI/DOType1xDI, 1 x DOConnector1x 4-pin 3.5 mm female socketSignaldefinitionDI+, DI-, DO+, DO-Level3.5 to 30V DC = HIGH, 0 to 1V DC = LOWAbsolute maximum VDC30V DC (DI/DO)Absolute maximum ADC10mA (DI/DO)Serial InterfaceTypeRS232 or RS485 (software configurable)Connector1x 3-pin 3.5 mm female socketSignal definitionRS232: TXD,RXD,GNDRS485: A,BOthersReset button1 x RSTLED indicators1 x RUN, 1 xMDM, 1 x WIFI,3 x RSSIWatchdogBuilt-inPower Supply and ConsumptionConnector2-pin 3.5 mm female socketInput voltage9 -36 V DCPower consumptionIdle: 60 mA@12 VData link: 580 mA (peak)@12 VSoftware(Basic features of RobustOS)Network protocolsPPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.VPN tunnelIPsec, OpenVPN, GRE,WireGuardFirewallDMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access ControlRemote managementWeb, CLI, SMSSerial portTransparent, TCP Client/Server, UDP, Modbus RTUGatewayOthersSmart Roaming v2, etc.SDKSupported programming languageC, C++Flash available for SDK16 MBRAM available for SDK64MBAppCenter(Available Apps forRobustOS)Apps*L2TP, PPTP, DMVPN, VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP,Language, RCMS*Request on demand. For more Apps please visitwww.robustel.com.Physical CharacteristicsIngress protectionIP30Housing & WeightMetal,350 gDimensions127x 82x30mmInstallationsDesktop, wall mounting and 35 mm DIN rail mountingOperating temperature-35 +75Storage temperature-40 +85Relative humidity5% 95% RHRegulatory and Type ApprovalsEnvironmentalRoHS 2.0EMIEN 55032 Conducted Emission Class BEN 55032 Radiated Emission Class BEMSEN 61000-4-2 (ESD) Level 4EN 61000-4-3 (RS) Level 2EN 61000-4-4 (EFT) Level 2EN 61000-4-5 (Surge) Level 2EN 61000-4-6 (CS) Level 2
