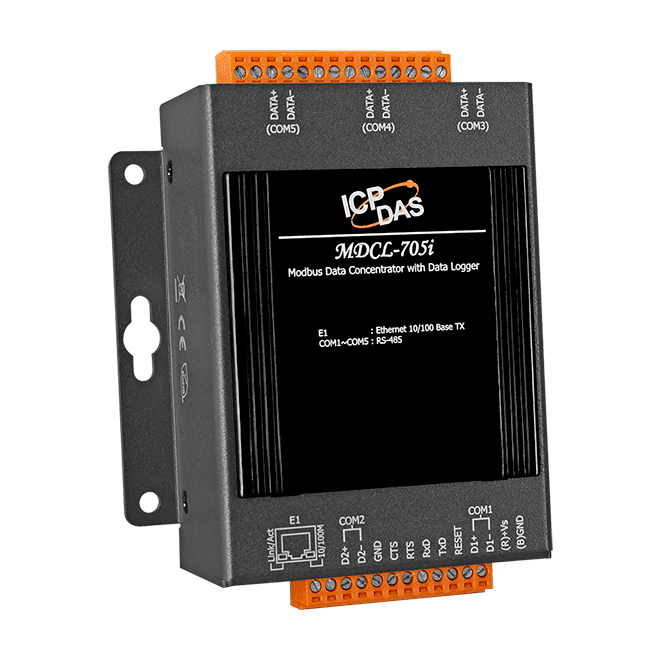

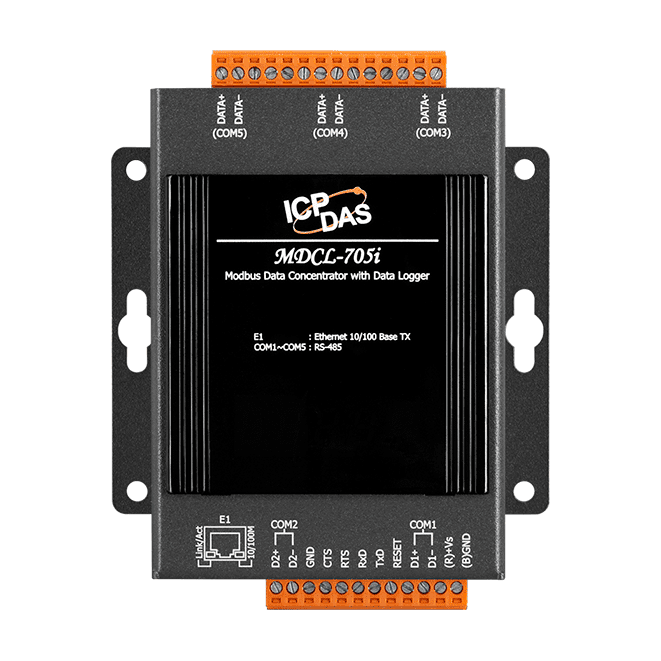

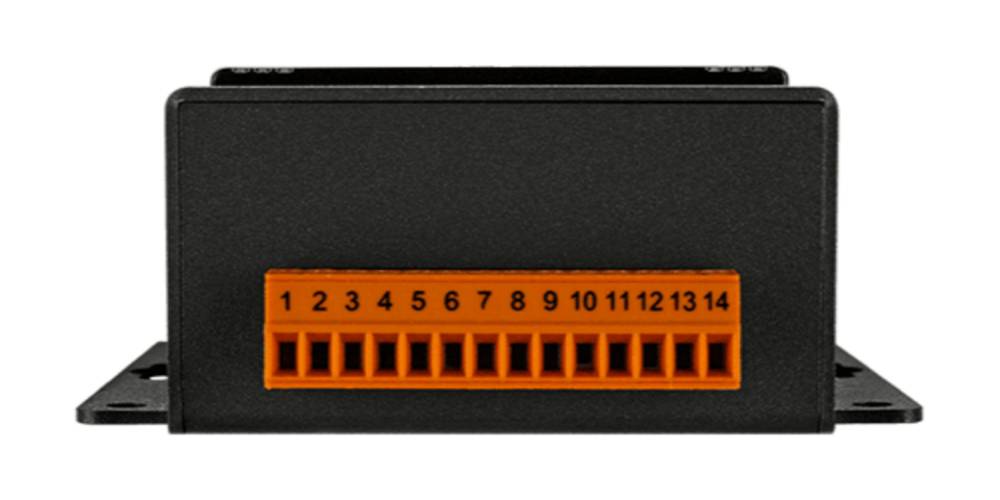

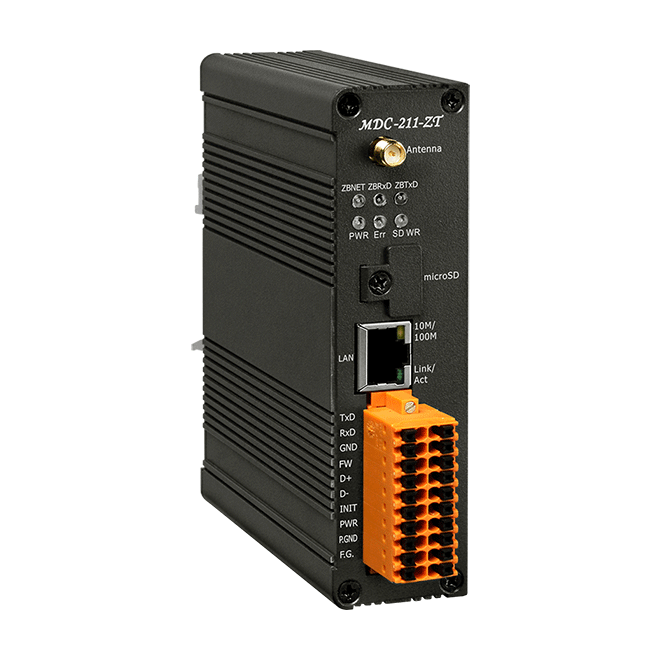

Modbus data concentrator Data Logger

Product Description

Features

• Supports Modbus master/slave on the serial port and Modbus TCP slave on the Ethernet interface
• Supports up to 8 simultaneous Modbus TCP connections at one time
• Data pool for up to 9600 registers
• Modbus polling commands for up to 250 definitions
• Easy configuration with a simple CSV file for quick start-up
• HTML5 Web-based user interface



Introduction

MDC-700 series is a Modbus Data Concentrator that has ability to perform up to 250 Modbus/RTU commands to read/write from/to Modbus slave devices via RS-232/485 and allows up to 8 Modbus/TCP masters to get the polled data via the Ethernet. MDC-700 series provide a built-in web server to ease the configuring and provide clear information for the performed results of each Modbus/RTU command on the RS-232/485.

Modbus Data Concentrator
The MDC performs the pre-defined Modbus/RTU commands to read/write data from/to the Modbus/ RTU slave devices via the RS-232/485. It mirrors the data of the slave devices to its own shared memory. And it accepts up to 8 Modbus/TCP masters to directly read/write data form/to the shared memory instead of polling each Modbus/RTU slave device one by one. This way not only makes the data on the RS-232/485 sharable to multiple Modbus/TCP master but also shorten the time to read/write data from/to multiple Modbus/RTU slave devices.

Display
Type	5 x Digit 7 Segment LED Display

LED Indicators
Status	1 x System, to display heart beat

Ethernet
Ports	x1, 10/100 Base-TX
Protocol	Modbus/TCP Slave

COM Ports
Ports	1 x 5-wire RS-232 6 x 3-wire RS-232 1 x 2-wire RS-485
Baud Rate	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format	N81, E81, O81
Protocol	Modbus RTU Master/Modbus RTU Slave
Polling Definition	250 definitions for all RS-232/485 ports
Shared Memory	9600 registers for each of AI, AO, DI and DO data

Power
Input Range	+10 VDC +30 VDC (non-regulated)
Consumption	2.5 W

Mechanical
Casing	Metal
Dimensions (mm)	102 mm x 125 mm x 28 mm (W x H x D)

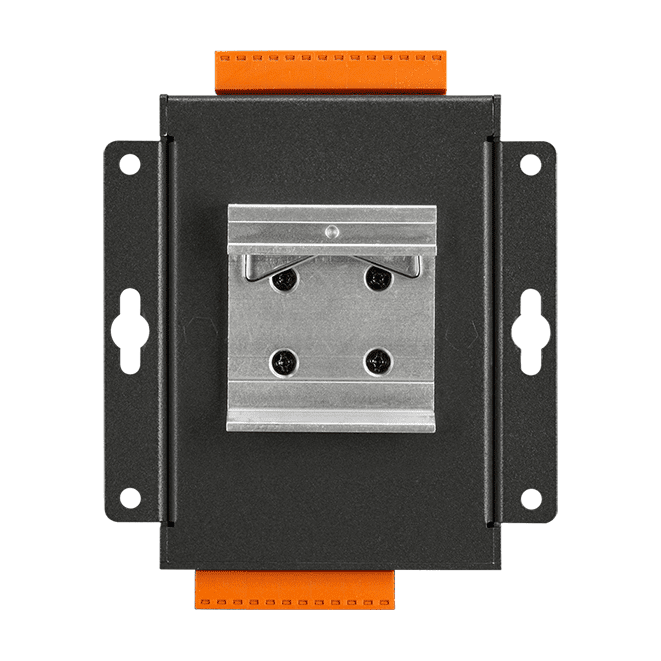

Installation	Wall Mounting

Environment
Operating Temperature	-25 +75 C
Storage Temperature	-30 +80 C
Humidity	10 90% RH, non-condensing

Comprehensive Data Logging and Storage

With a significant 32 GB memory card, the Modbus Data Concentrator Data Logger efficiently records and stores large volumes of process data. This capacity ensures historical data is readily available for analysis, compliance, and operational improvement within processing facilities.


Versatile Connectivity Options

Engineered with both RS485 and Ethernet interfaces, the logger is compatible with Modbus TCP/IP and RS485 protocols. This allows for flexible integration into existing process control architectures, facilitating centralized data collection and seamless communications.


User-Friendly Web Configuration

Configuration is made simple with a web-based interface, enabling efficient setup and management without specialized software. Users can easily adjust settings, monitor device status, and download data, reducing setup time and increasing productivity in industrial environments.
