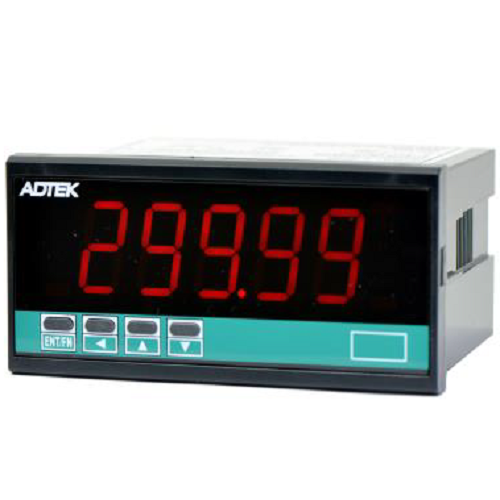

Pulse Frequency Indicator

Pulse Frequency Indicator

Product Details:

  • Product Type Power Meter
  • Frequency (MHz) 0.01~100 / ~140 Kilohertz ( KHZ )
  • Storage Temperature -10~70 Celsius (oC)
  • Network Connection Methods Wired
  • Power 3.0VA maximum Watt (w)
  • Dimension (L*W*H) 96mm(W) x 48mm(H) x 72mm(D) Millimeter (mm)
  • Weight 350 Grams (g)
  • Click to View more
X

Pulse Frequency Indicator Price And Quantity

  • 10 Piece

Pulse Frequency Indicator Product Specifications

  • Industrial
  • 96mm(W) x 48mm(H) x 72mm(D) Millimeter (mm)
  • -10~70 Celsius (oC)
  • 3.0VA maximum Watt (w)
  • 350 Grams (g)
  • Optional: AC 85~264V / DC 100~300V or DC 20~56V
  • Wired
  • 230VAC
  • Plastic
  • Power Meter
  • Gray
  • 0.01~100 / ~140 Kilohertz ( KHZ )

Pulse Frequency Indicator Trade Information

  • Cheque
  • 1000 Piece Per Month
  • 4 Days
  • Device
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • CE/FCC/ROHS

Product Description

Description

CS1-F economic type Frequency Indicator has been designed with high accuracy measurement, display and communication of Frequency. The innovation feature is auto-range input from 0.01Hz 100KHz (option 140KHz) and the display resolution will auto-change to show the highest according to input frequency. They are also available 1 option of 1 Relay outputs, 1 Analogue output or 1 RS485 (Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission or communication for a wide range of panels and testing applications.



Features

 Measuring Frequency AUTO RANGE 0.01100KHz / 140KHz (optional) / Voltage pulse or sine wave (specify).

 Accuracy: ± 0.005%; Display range: 099999; Decimal Point auto moving according to input frequency

 Option available 1 of 1 relay, 1 analogue output or RS485(Modbus RTU mode)

 1 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch energized with Start Delay / Hysteresis / Energized & De-energized Delay functions.

 Analogue output or RS 485 communication port in option

 CE Approved & RoHS



Applications

 RPM, Linear line speed of Machinery Measuring, Alarm or Communication with PC/PLC

 Testing Equipment for Frequency Measuring, Alarm or Communication
