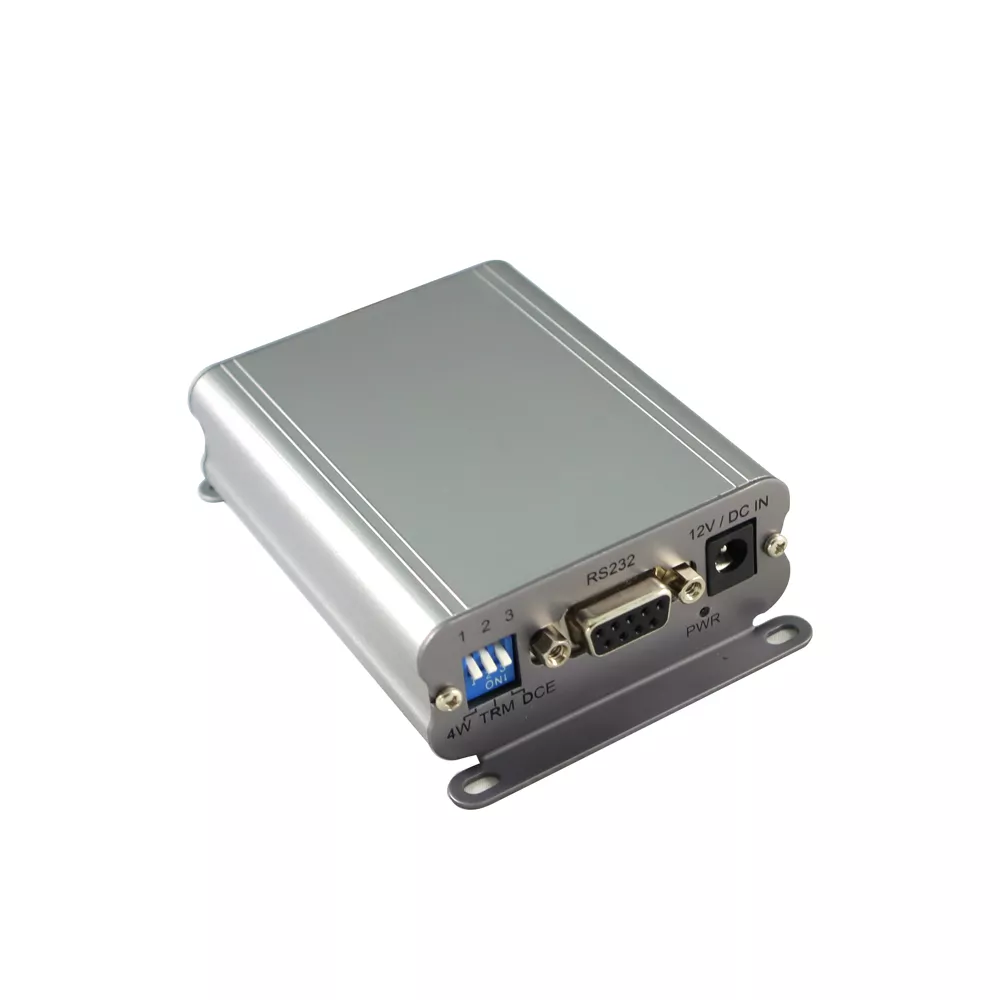

RS-232/422/485 to Fiber optic converter

Name: RS-232/422/485 to Fiber optic converter
Brand: NIMBUS TECHNOLOGIES
Price: 30000.0 INR
Availability: InStock

30000.0 INR/Piece

Get a Price/Quote

Product Details:

Color Black
Connectivity Type Fiber Optic
Mounting Type DIN Rail mounting
Features Supports RS-232/422/485 to Fiber optic conversion ensures long-distance communication and high signal integrity
Warranty Typically 1-2 years as per manufacturer
Application Data communication over fiber optic networks
Product Type Serial To Fiber Converter
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

RS-232/422/485 to Fiber optic converter Price And Quantity

Price 30000.0 INR/Piece
Minimum Order Quantity 1 Piece

RS-232/422/485 to Fiber optic converter Product Specifications

Mounting Type DIN Rail mounting
Voltage 9-36V DC Volt (v)
Material Plastic/Metal casing
Temperature Operating temperature range typically -40C to +85C Celsius (oC)
Connectivity Type Fiber Optic
Color Black
Application Data communication over fiber optic networks
Speed Range Depends on RS-232/422/485 protocol settings
Product Type Serial To Fiber Converter
Power External DC power supply (typically 9-36V DC) Watt (w)
Features Supports RS-232/422/485 to Fiber optic conversion ensures long-distance communication and high signal integrity
Warranty Typically 1-2 years as per manufacturer

RS-232/422/485 to Fiber optic converter Trade Information

Payment Terms Cheque
Supply Ability 1000 Piece Per Month
Delivery Time 3 Days
Packaging Details Device
Main Export Market(s) Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia
Main Domestic Market All India
Certifications CE/FCC/ROHS

Product Description

Features

Automatic RS-485 Direction Control
Avoids lightning strikes and EMI/RFI interference
ESD Protection for the RS-232/422/485 Data Line

Introduction

The I-2542 series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.

The I-2542-A and I-2542-B is a pair.

EMS Protection
ESD (IEC 61000-4-2)	Yes

LED Indicators

Status 1 x Power and Communication

COM Ports

Ports 1 x RS-232/422/485

Baud Rate 1200 115200 bps

Fiber

Ports Single-Mode; SC connector x 1

Fiber Cable 8.3/125, 8.7/125, 9/125 or 10/125 m

Transmission Distance (LoS) 15 km

Wavelength TX: 1310, RX: 1550 nm

Power

Input Range +10 VDC +30 VDC (Non-isolated)

Consumption 2 W

Mechanical

Casing Plastic

Dimensions (mm) 33 x 89 x 107 (W x L x H)

Installation DIN-Rail Mounting

Environment

Operating Temperature -25 +75 C

Storage Temperature -30 +75 C

Humidity 10 95% RH, Non-condensing
