Analog Input Module

15000.0 INR/Piece

Get a Price/Quote

Product Details:

Number of Channels 5 Ch
Storage Temperature -30 ~ +75 C Celsius (oC)
Network Connection Methods Wired
Power 1 W Max. Watt (w)
Dimension (L*W*H) 52 x 98 x 27 (W x L x H) Millimeter (mm)
Weight 350 Grams (g)
Usage Industrial
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Analog Input Module Price And Quantity

Minimum Order Quantity 1 Piece
Price 15000.0 INR/Piece

Analog Input Module Product Specifications

Network Connection Methods Wired
Weight 350 Grams (g)
Dimension (L*W*H) 52 x 98 x 27 (W x L x H) Millimeter (mm)
Color White
Storage Temperature -30 ~ +75 C Celsius (oC)
Number of Channels 5 Ch
Power Supply +10 VDC ~ +30 VDC
Usage Industrial
Material Plastic
Power 1 W Max. Watt (w)

Analog Input Module Trade Information

Payment Terms Cheque
Supply Ability 1000 Piece Per Month
Delivery Time 3 Days
Packaging Details Device
Main Export Market(s) Asia North America Australia Central America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications CE/ FCC/ROHS

Product Description

Features

5-channel Differential Inputs
Current Inputs
Adjustable Sampling Rate
Dual Watchdog

Introduction

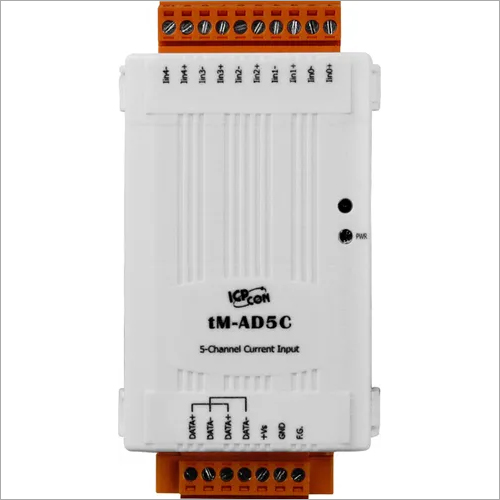

The tM-AD5C is an analog input module that includes 5 differential analog input channels and provides a programmable input range on all analog inputs (+/- 20 mA, 0 20 mA, 4 20 mA). The sampling rate of the tM-AD5C is adjustable and is available in either fast or normal mode. It also provides 4 kV ESD protection as well as 2500 Vrms intra-module isolation.

Applications

Industrial Automation
Industrial Machinery
Building Automation
Food and Beverage Systems
Semiconductor Fabrication
Control Systems

CPU Module
Watchdog Timer	Module, Communication (Programmable)

Isolation
Intra-module Isolation	2500 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power and Communication

Analog Input
Channels	5 Differential
Type	Current
Range	±20 mA, 0 20 mA, 4 20 mA
Resolution	Normal Mode: 14-bit Fast Mode: 12-bit
Accuracy	Normal Mode: ±0.1% Fast Mode: ±0.5%
Sampling Rate	Normal Mode: 10 Hz Fast Mode: 200 Hz
Input Impedance	125 Î

COM Ports
Ports	1 x RS-485
Baud Rate	1200 115200 bps
Data Format	(N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
Protocol	DCON, Modbus RTU, Modbus ASCII

Power
Reverse Polarity Protection	Yes
Consumption	1 W Max.
Powered from Terminal Block	10 30 VDC

Mechanical
Dimensions (mm)	52 x 98 x 27 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 +75 C
Storage Temperature	-30 +75 C
Humidity	10 95% RH, Non-condensing

Ordering Information:

Model	Description
tM-AD2	2-channel Analog Input Module with High Voltage Protection
tM-AD5	5-channel Analog Input Module with High Voltage Protection
tM-AD5C	5-channel Isolation Current Input Module
tM-AD8	8-channel Analog Input Module with High Voltage Protection
tM-AD8C	8-channel Isolation Current Input Module
tM-C8	8-channel Isolation Digital Output Module
tM-P3R3	3-channel Isolation Digital Input and 3-channel PhotoMOS Relay Output Module
tM-P4C4	4-channel Isolation Digital Input and 4-channel Digital Output Module
tM-P8	8-channel Isolation Digital Output Module
tM-R5	5-channel Relay Output Module
tM-TH8	8-channel Isolation Thermistor Input Module with High Voltage Protection
