Signal Relay Module
Product Details:
- Product Type Digital Module
- Number of Channels 4 DI & 4 Relay Module
- Storage Temperature -40 ~ +85 Celsius (oC)
- Network Connection Methods Wired
- Power 1.4 Watt (w)
- Dimension (L*W*H) 72 x 123 x 35 (W x L x H) Millimeter (mm)
- Weight 100 Grams (g)
- Click to View more
Signal Relay Module Price And Quantity
- 10 Piece
Signal Relay Module Product Specifications
- Industrial
- 4 DI & 4 Relay Module
- Plastic
- 72 x 123 x 35 (W x L x H) Millimeter (mm)
- Wired
- Digital Module
- 24VDC
- 100 Grams (g)
- Gray
- +10 VDC ~ +30 VDC
- -40 ~ +85 Celsius (oC)
- 1.4 Watt (w)
Signal Relay Module Trade Information
- Cheque
- 1000 Piece Per Month
- 4 Days
- All India
- CE/FCC/ROHS
Product Description
Features
- 4 Sink- or Source-type Digital Inputs
- 2 Form A and 2 Form C Signal Relay Outputs
- Digital Input Channels Can be Used as 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Built-in Dual Watchdog
Introduction
The M-7060/M-7060D provides 4 digital input channels, 2 Form A and 2 Form C signal relay output channels, while The M-7060P/M-7060PD provides 4 digital input channels, 2 Form A and 2 Form C power relay output channels. All digital input channels are also able to be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. The M-7060D/PD provides eight LED indicators for channel status monitoring.
The M-7060(D)/M-7060P(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments. The M-7060(D) is the ideal solution for small signal-switching applications, while The M-7060P(D) is the perfect solution for high-power applications.
Applications
Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis
Testing Equipment
CPU Module | |
---|---|
Watchdog Timer | Module, Communication (Programmable) |
Display | |
---|---|
Type | I/O LED Indicator |
Isolation | |
---|---|
Intra-module Isolation | 3750 VDC |
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | ï2 kV for Power Line |
ESD (IEC 61000-4-2) | ï4 kV Contact for Each Terminal ï8 kV Air for Random Point |
LED Indicators | |
---|---|
Status | 1 x Power and Communication 8 x Digital Input/Relay Output |
Digital Input/Counter | |
---|---|
Channels | 4 |
Type | Wet Contact |
Sink/Source (NPN/PNP) | Sink/Source |
ON Voltage Level | +1 VDC Max. |
OFF Voltage Level | +4 +30 VDC |
Max. Counts | 65535 (16-bit) |
Frequency | 100 Hz |
Min. Pulse Width | 5 ms |
Input Impedance | 3 kï |
Overvoltage Protection | ï35 VDC |
Relay Output | |
---|---|
Channels | 4 (2 x Form A, 2 x Form C) |
Type | Signal Relay |
Contact Material | Gold-plated silver |
Contact Rating | Form A: 0.6 A @ 125 VAC 2 A @ 30 VDC Form C: 0.6 A @ 125 VAC 2 A @ 30 VDC |
Operate Time | 3 ms |
Release Time | 2 ms |
Electrical Endurance | 5 x 105 ops. |
Mechanical Endurance | 1 x 108 ops. |
Power on Value | Programmable |
Safe Value | Programmable |
COM Ports | |
---|---|
Ports | 1 x RS-485 |
Baud Rate | 1200 115200 bps |
Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
Protocol | Modbus RTU, DCON |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | +10 +30 VDC |
Consumption | 1.4 W |
Mechanical | |
---|---|
Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
Installation | DIN-Rail Mounting |
Environment | |
---|---|
Operating Temperature | -25 +75 C |
Storage Temperature | -40 +85 C |
Humidity | 10 95% RH, Non-condensing |

Price:
- 50
- 100
- 200
- 250
- 500
- 1000+

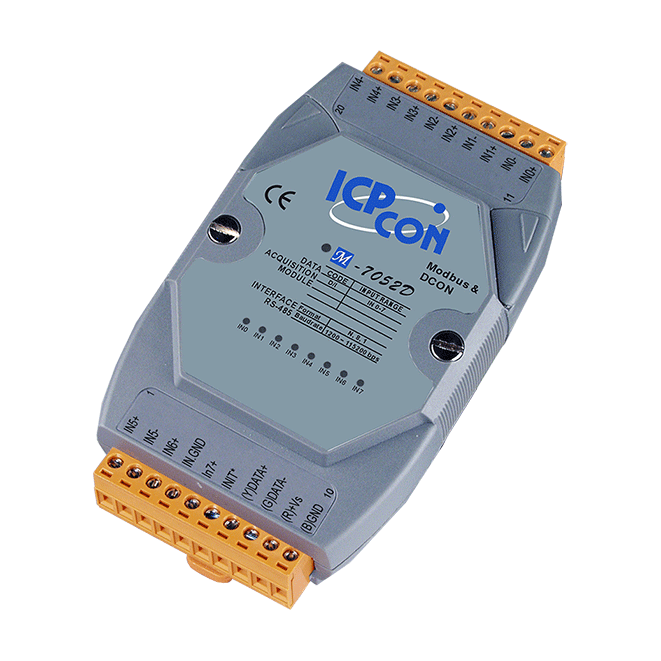

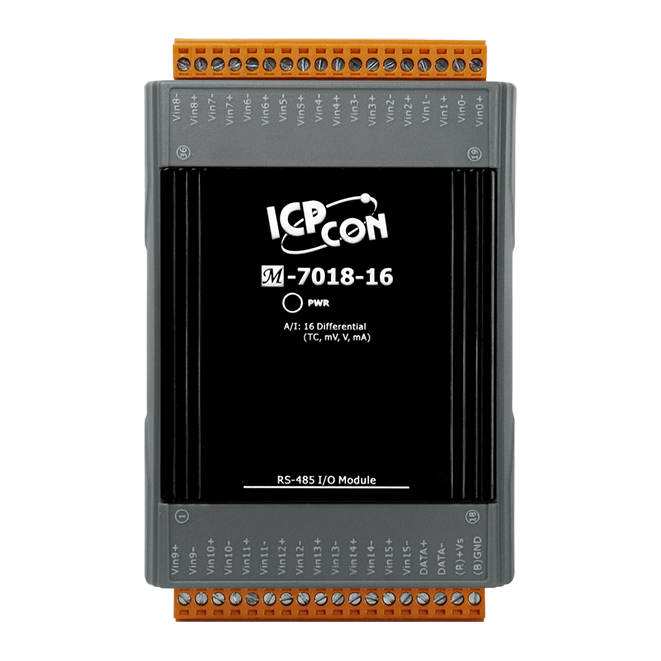

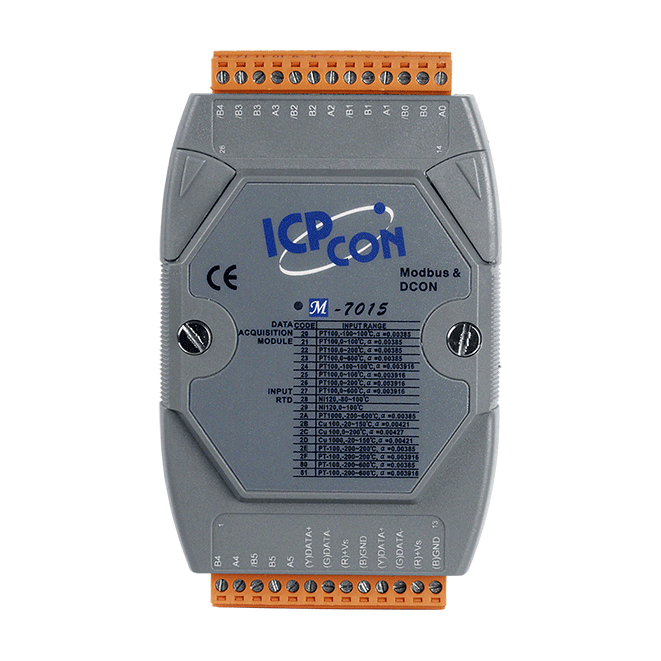

Other Products in 'I/O Modules with RS485' category
![]() |
