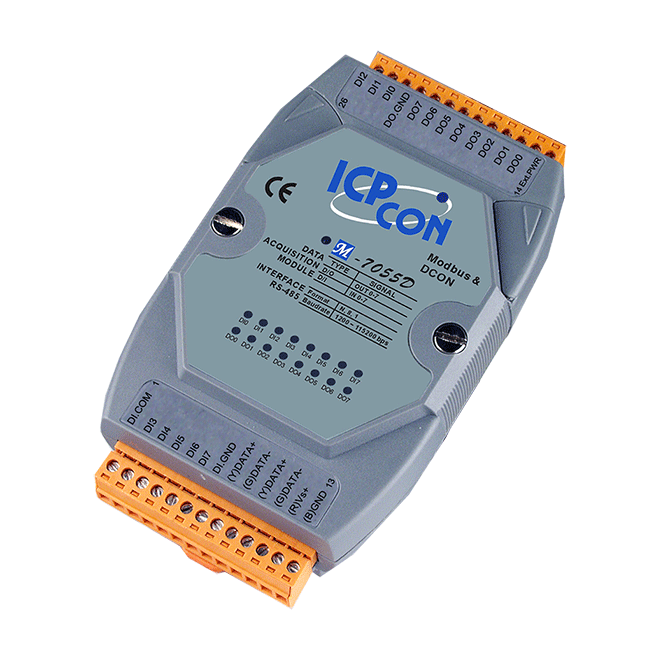

16 Ch Digital Output Module

Product Description

FeaturesSource-type Digital Output with Overload ProtectionConfigurable Power-on Value and Safe Value SettingsShort Circuit ProtectionOverload and Overvoltage ProtectionBuilt-in Dual WatchdogIntroductionThe M-7045 series offers 16 digital output channels, each of which features photocoupler isolation. The M-7045 supports source-type output, while The M-7045-NPN supports sink-type output, and both are equipped with short circuit protection. The M-7045D/M-7045D-NPN provides 16 LED indicators for channel status monitoring.The M-7045(D)/M-7045(D)-NPN supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection, 4 kV EFT protection, 3 kV surge protection for power input, and 3750 VDC Intra-module isolation are standard, and all hardware specifications are the same as the I-7045(D)/I-7045(D)-NPN.Applications Building Automation Factory Automation Machine Automation Remote Maintenance Remote Diagnosis Testing EquipmentCPU ModuleWatchdog TimerModule, Communication (Programmable)DisplayTypeI/O LED IndicatorIsolationIntra-module Isolation3750 VDCEMS ProtectionEFT (IEC 61000-4-4)4 kV for the 16 DO channels and Power,2 kV for the RS-485 PortESD (IEC 61000-4-2)4 kV Contact for Each Terminal8 kV Air for Random PointSurge (IEC 61000-4-5)3 kV for Power LineLED IndicatorsStatus1 x Power and Communication16 x Digital OutputDigital OutputChannels16TypeOpen SourceSink/Source (NPN/PNP)SourceLoad Voltage+10 +40 VDCLoad Current650 mA/ChannelOvervoltage Protection47 VDCOverload Protection1.4 AShort-circuit ProtectionYesPower on ValueProgrammableSafe ValueProgrammableCOM PortsPorts1 x RS-485Baud Rate1200 115200 bpsData Format(N, 8, 1)ProtocolModbus RTU, DCONPowerReverse Polarity ProtectionYesInput Range+10 +30 VDCConsumption1.5 WMechanicalDimensions (mm)72 x 123 x 35 (W x L x H)InstallationDIN-Rail MountingEnvironmentOperating Temperature-25 +75 CStorage Temperature-40 +85 CHumidity10 95% RH, Non-condensing
