USB to HART Converter

Product Description

Features

• Support HART Short/Long frame
• Support HART Burst mode
• Support point-to-point or multi-drop HART mode
• Support connecting up to 15 HART slave devices
• Allow two HART masters
• Provide utility tool for module configuration and HART communication
• No external power supply (powered by USB)
• Support firmware update via USB
• 4KV ESD Protection
• Selectable 250 load resistor
• Support HART OPC Server provided by HART COMMUNICATION FOUDATION

Introduction

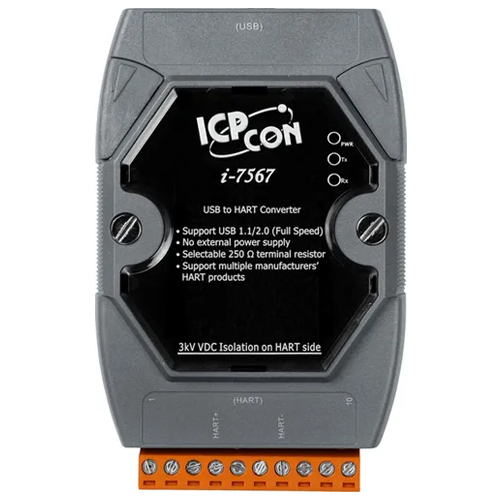

I-7567 is a USB to HART converter and can be used as a HART master with HC_Tool utility or a HART slave with HDS utility.

(1) I-7567 as HART Master :

It allows users to access the HART slave via virtual COM-port of PC. When connecting I-7567 to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7567. In addition, by using the I-7567 utility, users can configure module and test HART communication easily.

(2) I-7567 as HART Slave :

HART Device Simulator (called HDS) is the HART device simulation software developed by ICP DAS. It can be used to simulate multi HART slave devices simultaneously to exchange data with HART master device by using ICP DAS HART converter (like: I-7567 / I-7570 / I-7547) connected to any COM port (USB / 232 / 485 / Ethernet). By this way, users can develop or verify the HART master program without any HART slave device.

Applications

• Current Measuring
• Petrochemical Industry Application
• Environment Monitoring
• Tunnel Monitoring
• Monitor system
• Building Monitoring
