PROFINET To Modbus TCP Converter
38000.00 INR/Piece
Product Details:
- Connectivity Type Wired
- Application Industrial Automation Factory Automation Process Automation
- Weight 220 Grams (g)
- Mounting Type Din Rail
- Warranty 1 Year all manufacturing Defect
- Frequency 50 Hertz (HZ)
- Usage Industrial Automation
- Click to View more
X
PROFINET To Modbus TCP Converter Price And Quantity
- 2 Piece
- 38000.00 INR/Piece
PROFINET To Modbus TCP Converter Product Specifications
- 110x42x76
- Blue
- 24DC Volt (v)
- 50 Hertz (HZ)
- Profinet Device
- 1 Year all manufacturing Defect
- Din Rail
- 220 Grams (g)
- Industrial Automation
- Industrial Automation Factory Automation Process Automation
- Plastic
- 3.4 Watt (w)
- Wired
PROFINET To Modbus TCP Converter Trade Information
- Cheque
- 1000 Piece Per Month
- 3 Days
- No
- Device
- Asia
- All India
- CE/FCC/ROHS
Product Description
Features
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- Max length of input/output data is 512/512 Bytes
- Support Modbus Master and Slave mode
- 4 kV Contact ESD protection for any terminal
Introduction

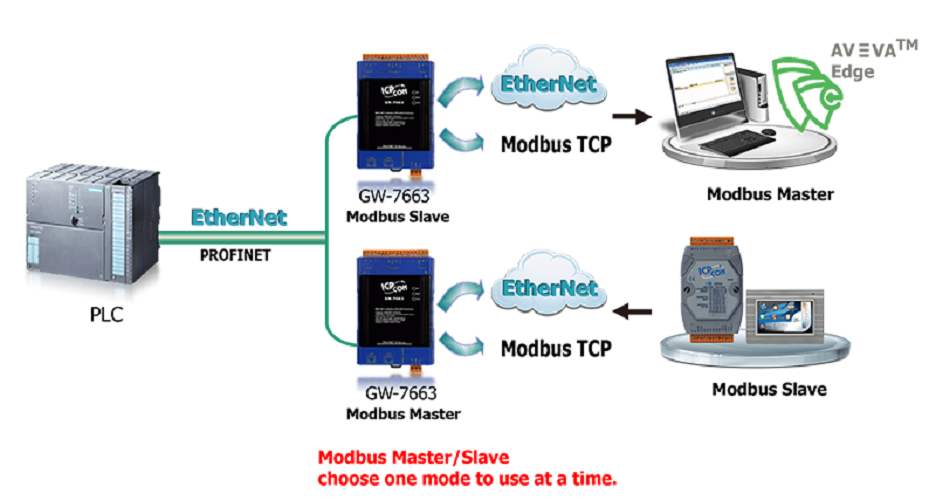

The GW-7663 specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus TCP devices. These Modbus devices maybe a PLC, a sensor, ICPDAS I-8KE4-MCTP, ET-7000 series modules and so forth. We also provide a utility software for users to configure GW-7663. By using this module, users can put their Modbus devices into PROFINET network easily.
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
|---|---|
| Status | AP LED, BOOT LED, ERR LED |
| Ethernet | |
|---|---|
| Services | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET | |
|---|---|
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
|---|---|
| Consumption | 3.4 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 42 x 76 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 +75 |
| Storage Temperature | -30 +80 |
| Humidity | 10 90% RH, Non-condensing |
