RPM Indicator

Product Description

Description

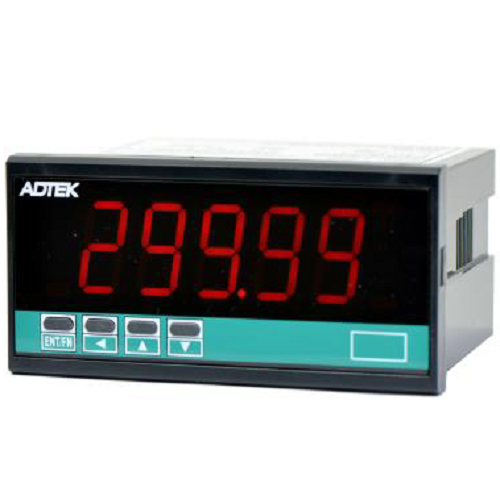

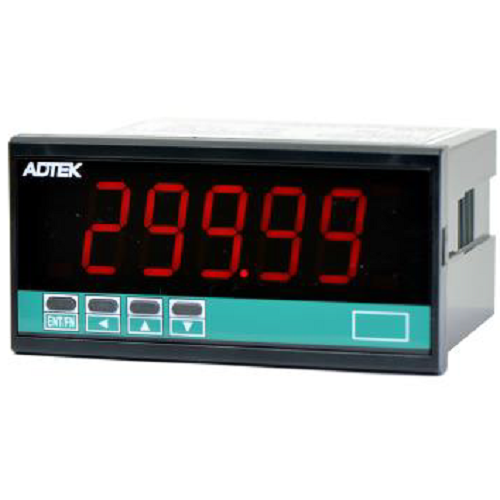

CS2-RL RPM Indicator has been designed with high accuracy measurement, display and communication of pulse (Frequency). The innovation feature is auto-range input from 0.01Hz 100KHz (option 140KHz) and the display resolution will auto-change to show the highest according to input frequency. They are also building in 4 Relay outputs, 3 External Control Inputs, 1 Analogue output and 1 RS485(Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission and communication for a wide range of testing and machinery control applications.

Features

– Measuring Frequency AUTO RANGE 0.01100KHz / 140KHz(optional) / Contact, NPN, PNP, Voltage pulse can be switch on rear of meter

– Accuracy: ± 0.005%; Display range: 099999; Decimal Point auto moving according to input frequency

– 4 relays can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch / Go energized with Start Delay / Hysteresis / Energized & De-energized Delay functions, or to be a remote control.

– Analogue output and RS 485 communication port in option

– 3 external control inputs can be programmed individual to be Tare (Relative PV) / PV Hold / Maximum or Minimum Hold / DI (remote monitoring) / Reset for Relay Energized Latch.

– CE Approved & RoHS
