Profinet I/O Module
Profinet I/O Module Profinet I/O Module Profinet I/O Module

Profinet I/O Module

40000.0 INR/Piece
Get a Price/Quote

Product Details:

  • Product Type Profinet Module
  • Color Blue
  • Material Plastic
  • Power 5 Watt (w)
  • Temperature -25 ~ +70 Celsius (oC)
  • Warranty 1 Year
  • Click to View more
Request to Call Back Send Inquiry
X

Profinet I/O Module Price And Quantity

  • 40000.0 INR/Piece
  • 1 Piece

Profinet I/O Module Product Specifications

  • Plastic
  • 5 Watt (w)
  • -25 ~ +70 Celsius (oC)
  • Blue
  • 1 Year
  • Profinet Module

Profinet I/O Module Trade Information

  • Cheque
  • 1000 Piece Per Month
  • 3 Days
  • Yes
  • Device
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • CE/FCC/ROHS

Product Description

Features

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • 16-bits resolution & 10Hz sample rate
  • Supports thermocouple devices with J,K,T,E,R,S,B,N,C
  • 4 kV Contact ESD protection for any terminal

Introduction

The PFN-2019 is specially designed for PROFINET IO device. It has 10-channel universal analog input with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

Applications

Industrial Automation
Factory Automation
Process Automation
Etc


CPU Module
CPU 32-bit CPU Core
EEPROM 8 KB
Flash 4 MB
SRAM 32 MB
Watchdog Timer CPU built-in
LED Indicators
Status PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Analog Input
Channels 10 channel differential
Range +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-5V, +/-10V, +/-20mA, 020mA, 420mA (Jumper Selectable),
Thermocouple Type: J, K, T, E, R, S, B, N, C
Resolution 16 bit
Accuracy +/- 0.1% of FSR
Sampling Rate 10 Hz (Total)
Open Wire Detection Yes
Ethernet
Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
PROFINET
Conformance Classes Class B
Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time 1 ms (min)
Protocol PROFINET IO Device
Power
Consumption 5 W
Mechanical
Dimensions (mm) 33 x 93 x 126 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 +70 „
Storage Temperature -30 +80 „
Humidity 10 90% RH, Non-condensing

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Profinet Modules' category

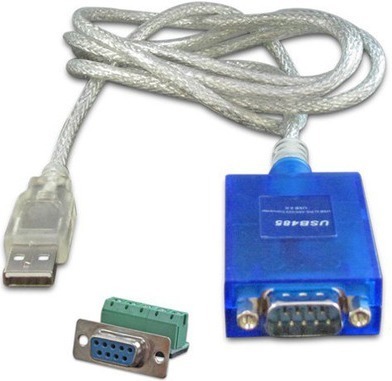

PROFINET to RS485 Converter
