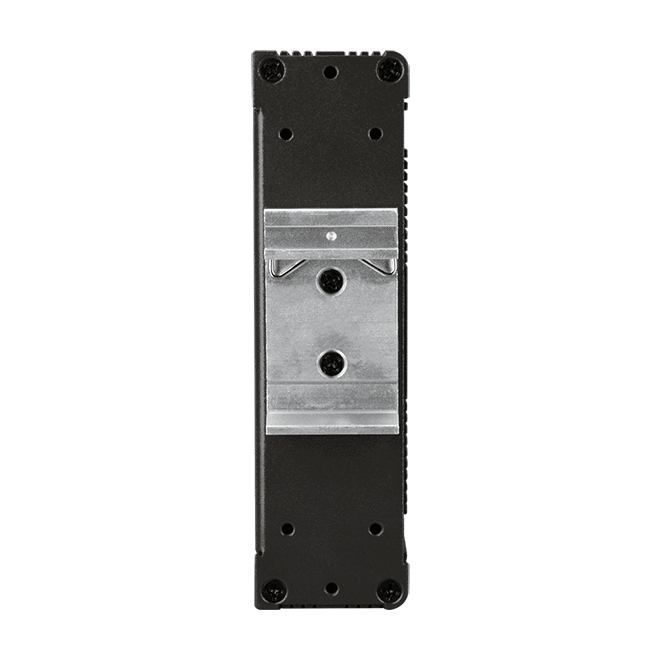

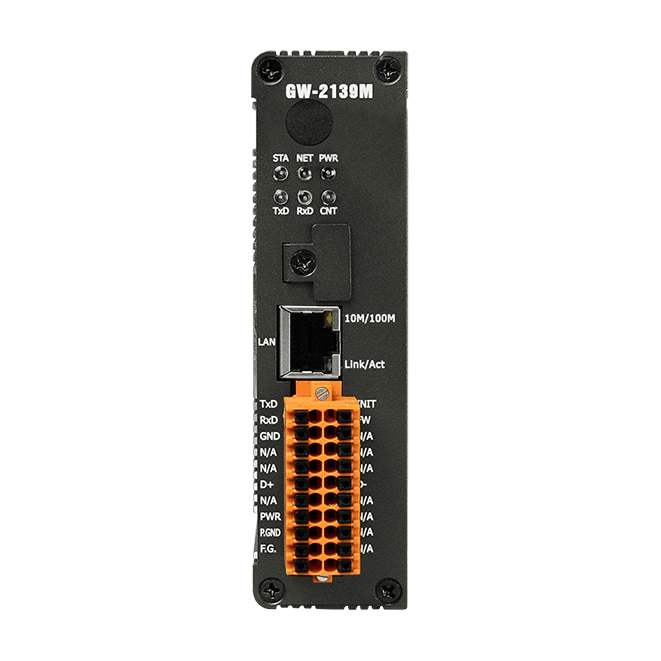

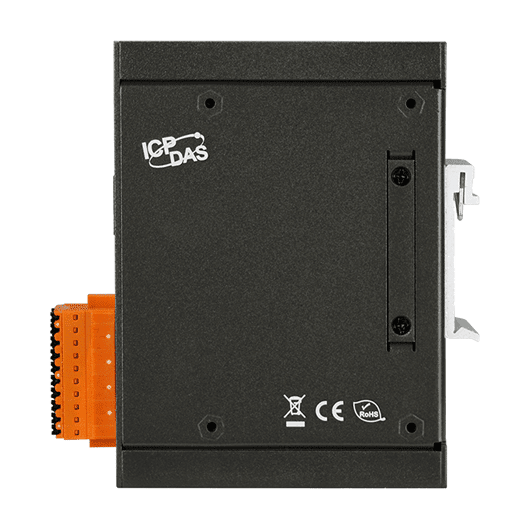

Modbus TCP to BACnet MS/TP Gateway

45000.0 INR/Set

Get a Price/Quote

Product Details:

Usage & Applications Building Automation, Heating, Ventilating, and Air-conditioning Control, Lighting Control
Product Type Industrial
Number of Channels 1
Storage Temperature -30 ~ +80 Celsius (oC)
Network Connection Methods Wired
Power 5 W @ 24 VDC Volt (v)
Dimension (L*W*H) 33 x 120 x 116 Millimeter (mm)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Modbus TCP to BACnet MS/TP Gateway Price And Quantity

Price 45000.0 INR/Set
Minimum Order Quantity 1 Piece

Modbus TCP to BACnet MS/TP Gateway Product Specifications

Usage Industrial
Power Supply 24VDC
Network Connection Methods Wired
Dimension (L*W*H) 33 x 120 x 116 Millimeter (mm)
No. of Ports/Pins 1
Product Type Industrial
Color BLACK
Power 5 W @ 24 VDC Volt (v)
Usage & Applications Building Automation, Heating, Ventilating, and Air-conditioning Control, Lighting Control
Material Metal
Weight 620 Grams (g)
Storage Temperature -30 ~ +80 Celsius (oC)
Number of Channels 1

Modbus TCP to BACnet MS/TP Gateway Trade Information

Delivery Time 4 Days

Product Description

GW-2139M is a network gateway allowing Modbus TCP client devices to be accessed BACnet MS/TP network as a BACnet MS/TP master. The BACnet Master Slave Token Passing (MS/TP) protocol is used to relay and exchange information between building devices. GW-2139M contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus TCP registers to any combination of BACnet objects. BACnet interoperability building blocks (DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A) are Supported. All the data transfer is configurable using ICPDAS Utility.
