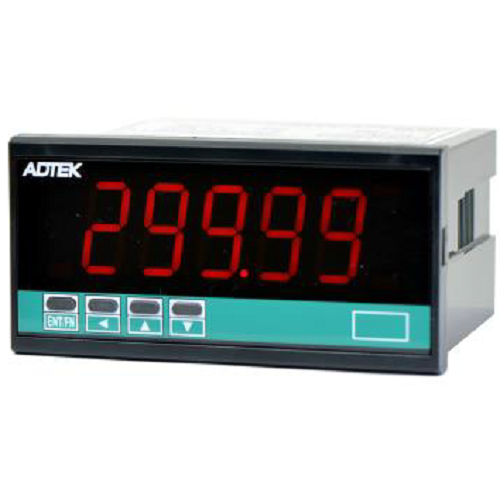

RS485 Display Indicator

RS485 Display Indicator

Product Details:

  • Product Type Power Meter
  • Storage Temperature -10~70 Celsius (oC)
  • Network Connection Methods Wired
  • Power 3.0VA maximum ADH/ADL: 8VA/4.0 Watt (w)
  • Dimension (L*W*H) 96(W) x 48(H) x 72(D) Millimeter (mm)
  • Weight 350 Grams (g)
  • Usage Industrial
  • Click to View more
X

RS485 Display Indicator Price And Quantity

  • 10 Piece

RS485 Display Indicator Product Specifications

  • Power Meter
  • 3.0VA maximum ADH/ADL: 8VA/4.0 Watt (w)
  • Industrial
  • AC115/230V,50/60Hz;
  • 350 Grams (g)
  • -10~70 Celsius (oC)
  • Gray
  • Plastic
  • Wired
  • 96(W) x 48(H) x 72(D) Millimeter (mm)
  • 230VAC

RS485 Display Indicator Trade Information

  • Cheque
  • 1000 Piece Per Month
  • 4 Days
  • Device
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • CE/FCC/ROHS

Product Description

ï TECHNICAL SPECIFICATION

Display & Functions

ï LED: Numeric: 5 digits, 0.8ï(20.0mm)H red high-brightness LEDRS 485 communication: 1 square orange LED

ï Display range: -1999929999;

ï RS 485 Communication(option)

ï Protocol: Modbus RTU mode

ï Baud rate: 1200/2400/4800/9600/19200/38400 programmable

ï Data bits: 8 bits

ï Parity: Even, odd or none (with 1 or 2 stop bit) programmable

ï Address: 1 255 programmable

ï Remote display: to show the value from RS485 command of master

ï Distance: 1200M

ï Terminate resistor: 150ï at last unit

Electrical Safety

ï Dielectric strength: AC 2.0 KV for 1 min, Between Power / Input / Output / Case

ï Insulation resistance: ï100M ohm at 500Vdc, Between Power / Input / Output

ï Isolation: Between Power / Input / RS485

ï EMC: EN 55011:2002; EN 61326:2003

ï Safety(LVD): EN 61010-1:2001

Environmental

ï Operating temp.: 060 ËšCOperating

ï humidity: 2095 %RH, Non-condensing

ï Temp. coefficient: ï100 PPM/ËšC

ï Storage temp.: -1070 ËšC

ï Enclosure: Front panel: IEC 529 (IP52);

ï Housing: IP20

Mechanical

ï Dimensions: 96mm(W) x 48mm(H) x 72mm(D)

ï Panel cutout: 92mm(W) x 44mm(H)

ï Case materiel: ABS fire-resistance (UL 94V-0)

ï Mounting: Panel flush mounting

ï Terminal block: Plastic NYLON 66 (UL 94V-0)10A 300Vac, M2.6, 1.32.0mm2(1622AWG)

ï Weight: 350g

Power

ï Power supply: AC115/230V,50/60Hz;

ï Excitation supply: DC24V/30mA maximum in standard

ï Back up memory: By EEPROM
