प्रोफिनेट से मोडबस गेटवे

उत्पाद वर्णन

Features

• Protocol: PROFINET IO Device
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided (Version 2.25)
• Max length of input/output data is 512/512 Bytes
• Support Modbus Master and Slave mode
• Support Modbus RTU and ASCII format
• 4 kV Contact ESD protection for any terminal

Introduction

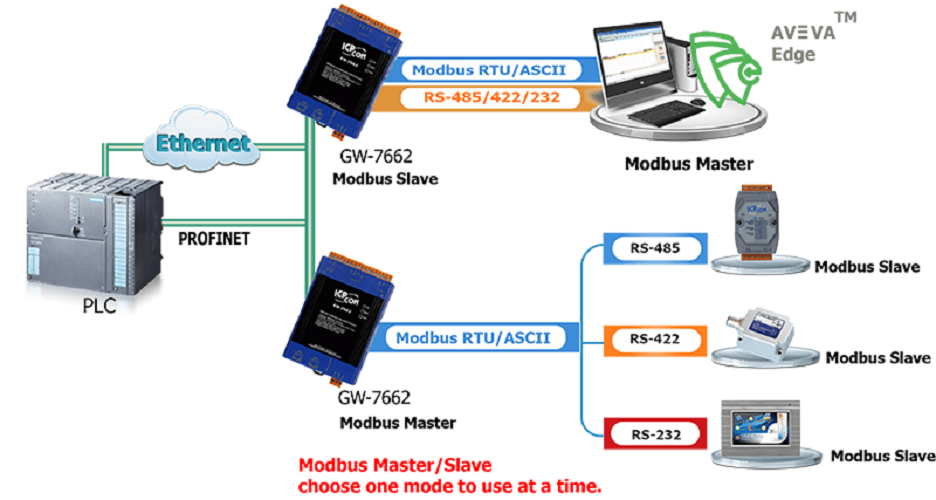

The GW-7662 specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus devices. These Modbus devices maybe a PLC, a sensor, ICPDAS M-7000 series modules and so forth. We also provide a utility software for users to configure GW-7662. By using this module, users can put their Modbus devices into PROFINET network easily.
