RS485 HUB

Product Description

The I-7561 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface. Connecting the I-7561 to a PC, you get one RS-232/422/485 port.

Like the I-7520A, the I-7561 contains Self-Tuner chip auto-tunes the Baud Rate and data format to the RS-485 network. The I-7561 module derives its power from the USB port and doesn't need any power adapter.

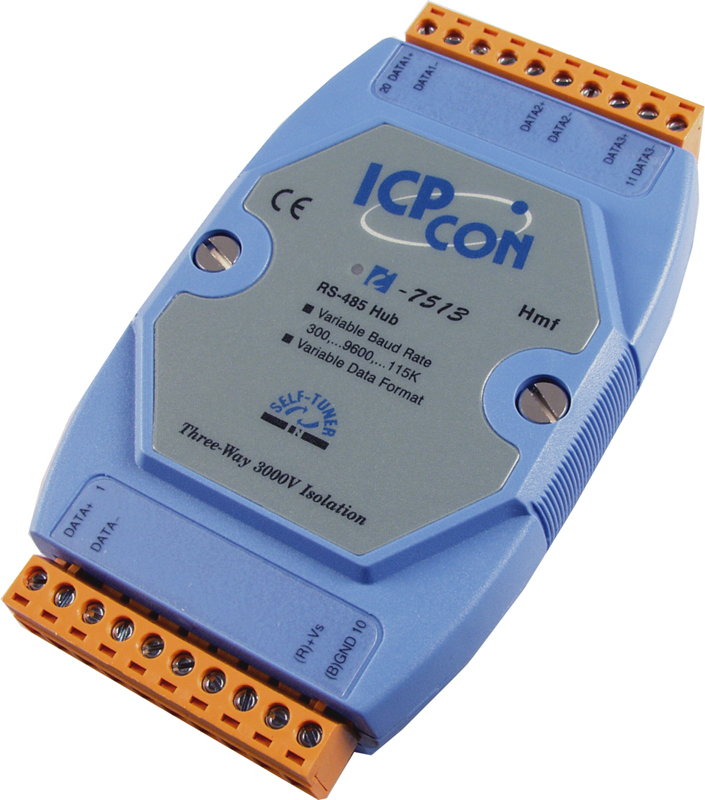

The I-7513 is a 3 channel RS-485 Active Star wiring HUB. The unit has three independent RS-485 output channel each with their own driver, which can transmit signal across 1200m of cable on each channel.

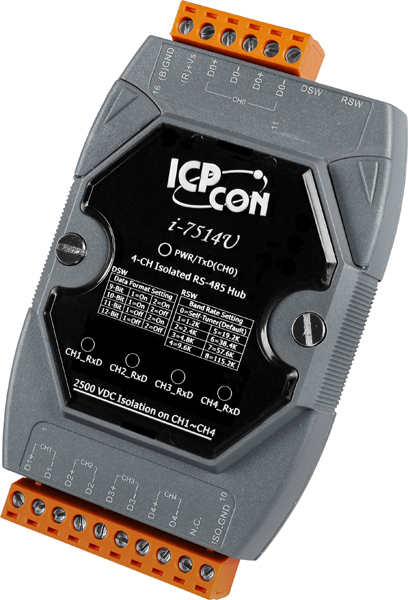

The I-7514 is a 4 channel RS-485 Active Star Wiring HUB. The Unit has Four independent RS-485 output channel each with their own driver. This Module consist of Self-Tuner ASIC for Baud Rate.

Features: -

1) Fully Compliant with the USB 1.1/2.0/3.0 (I-7561)

2) 3000 VDC Isolation Protection on the RS-232/422/485 side

3) ESD Protection for the RS-232/422/485 Data Line

4) Transmission speed up to 921.6 kbps (For I-7561U)

5) No External Power Supply required

6) Automatic RS-485 Direction Control

7) Operating Temperatures, -25  +75 C

8) DIN-Rail Mounting

Ordering Information: -
